Hywell Supply Food Dryer for Mushrooms

  • Hywell Supply Food Dryer for Mushrooms
  • Hywell Supply Food Dryer for Mushrooms
  • Hywell Supply Food Dryer for Mushrooms

Hywell Supply Food Dryer for Mushrooms

    Payment Type: L/C,T/T,Western Union
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: Wood Box
    Productivity: 20-30 Set per Year
    Brand: Hywell
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 5-10 Set/Sets per Year
    Certificate: ISO CE
    HS Code: 8419399090
    Port: Shanghai

Basic Info

Model No.: CT-C

Product Description

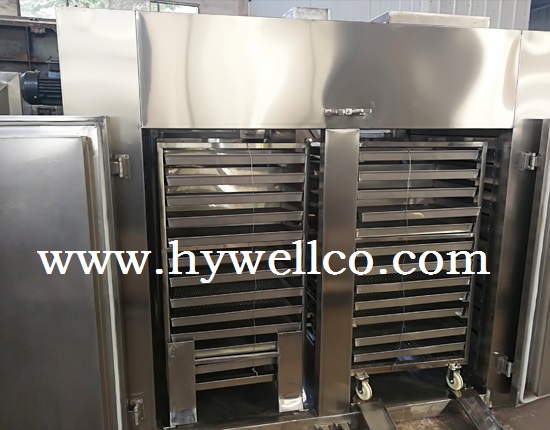

Hywell Supply Food Dryer for Mushroom

Feature


1. Commonly using steam pressure 0.2-0.8MPa(2-8 bar).

2. For CT-C-I, electric heated, rated power consumption:15kW, real consumption : 5-8kW/h.

3. The special requirements should be indicated at the time of order.

4. Baking plate dimensions: 460x640x45mm.

5. CT-C series hot air oven have good drying effiency for mushroom, so it aso can named as Mushroom Food Dryer,Mushroom Drying Oven,Food Dryer for Mushroom


CT-C series Mushrooms Food Dryer is equipped with low noise axial flow fan and automatic temperature control system.

Most of hot air is circled inside the dry oven, thus rendering hot efficiency very high and saving energy source. It is applied to intensify ventilation and equipped in the adjustable air distributing plate inside the dry oven. And Mushrooms Drying Machine can use dried Raw Material and heat source, involving steam, hot water, electricity or far infrared.


The circle system is fully sealed, making the hot efficiency increased from 3-7% of traditional oven to 35-45%, even up to the maximum hot efficiency of 70%. The successful design of Food Dryer for Mushrooms makes the Mushrooms Dryer Machine catch up the advanced level both at home and abroad.


Applications
Food Industry:Fatty milk powder, protein, cocoa milk powder, subsitute milk powder ,egg white (yolk), food and plant ,oats ,chicken juice, coffee ,instant dissoluble tea ,seasoning meat ,protein ,soybean ,peanut protein , hydrolysate and so forth .Sugar ,corn syrup ,corn starch ,glucose .pectin ,malt sugar , sorbic acid potassium and etc.
Medicine: Traditional Chinese medicine extract ,ointment ,yeast, vitamin ,antibiotic, amylase ,lipase and etc .


Advantage
1. Most hot air is circulated in the oven. The heat efficiency is high and the energy is saved. By using the forced ventilating function, there are adjustable air distribution plates inside the oven, the materials can be dried uniformly.

2. The heating source might be steam, hot water, electricity and far infrared, with a wide selection.

3. The whole machine is low in the noise. The operation is in balance.

4. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide.

5. The machine can be used for drying various materials.

Application
This drying oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

Optional Choices
1. For the main electrical components , we have international brand choices such as ABB , Siemens or Schneider or others.
2. For the material for the machine , we have choices on AISISUS304 , AISISUS316L,carbon steel and so on .
3. For the control system , we have choices on push button, PLC+HMI and so on .
4. For the heating system for the machine , it is very flexible. we can configure it based on the customer site conditions ,such as steam ,electricity.

5. If without heating system , it can as a cooler to make particle with cooling air.


Industry standard Specification standard Drying weight per batch (Kg) Power (Kw) Steam consumption (Kg/h) Evaporation area (m2) Air capacity (m3 /h) Temperature error Baking plate Overall dimension (LxWxH) mm Baking cart (set)
RXH-7-D CT-C-O 60 0.75 12 7.1 3450 ±2 24 1400×1200×2000 1
RXH-14-D CT-C-I 120 0.75 18 14.1 3450 ±2 48 2300×1200×2000 2
RXH-27-D CT-C-II 240 0.75x2 36 28.3 6900 ±2 96 3300×2200×2000 4
RXH-41-D CT-C-III 360 0.75x3 60 42.4 10350 ±2 144 3550×2200×2000 6
RXH-54-D CT-C-IV 480 0.75x4 80 56.5 13800 ±2 192 4460×1000×2290 8

Mark

It also design and manufacture base customer require. Welcome to contact us!
